Rubber Expansion Bellows & Pipework Expansion Joints

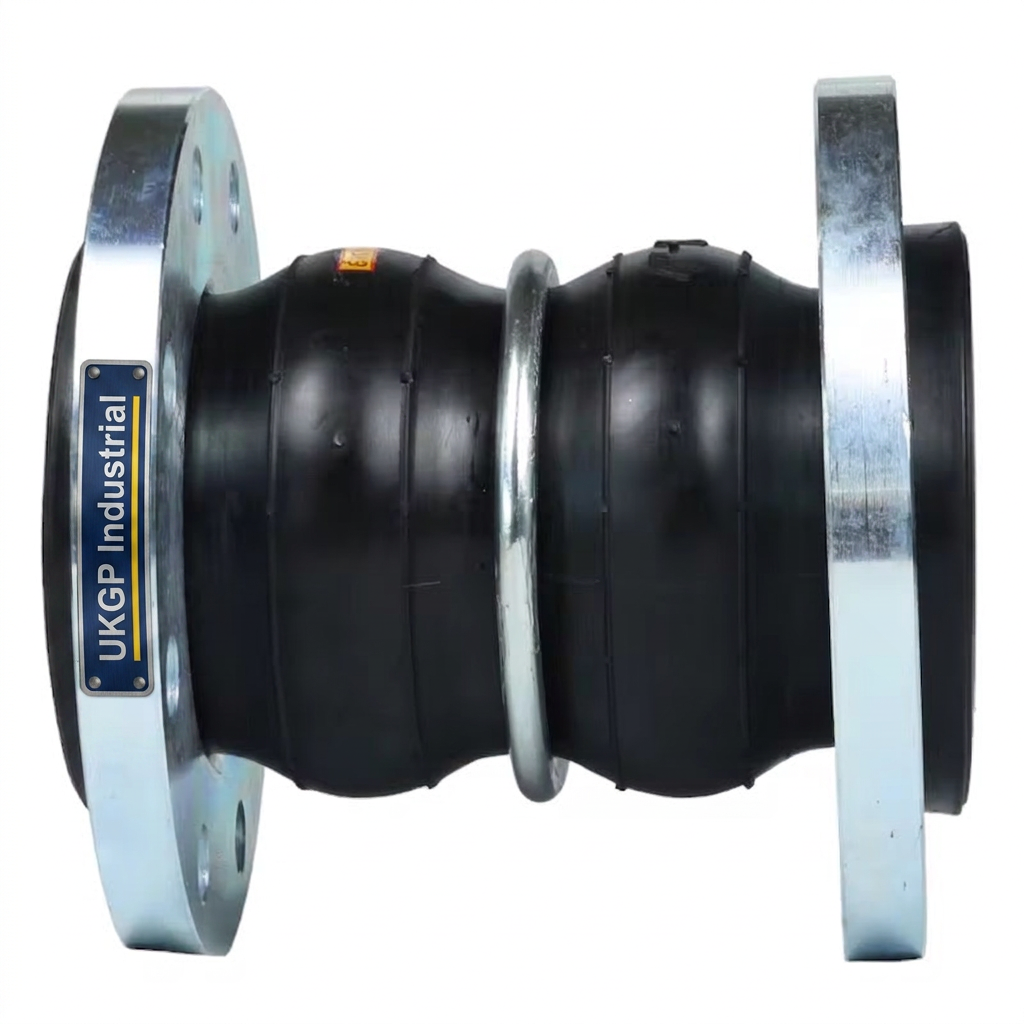

Single and twin sphere rubber expansion bellows for thermal compensation and vibration absorption in pipework.
Description
Industrial grade expansion bellows engineered for the thermal compensation, vibration isolation and movement absorption found in critical piping systems. Available in axial, lateral and angular configurations across a full size range.
UK stock · Same-day dispatch before 3pm · Trade accounts welcome
UKGP · IndustrialMost specified
Popular sizes — UK stock

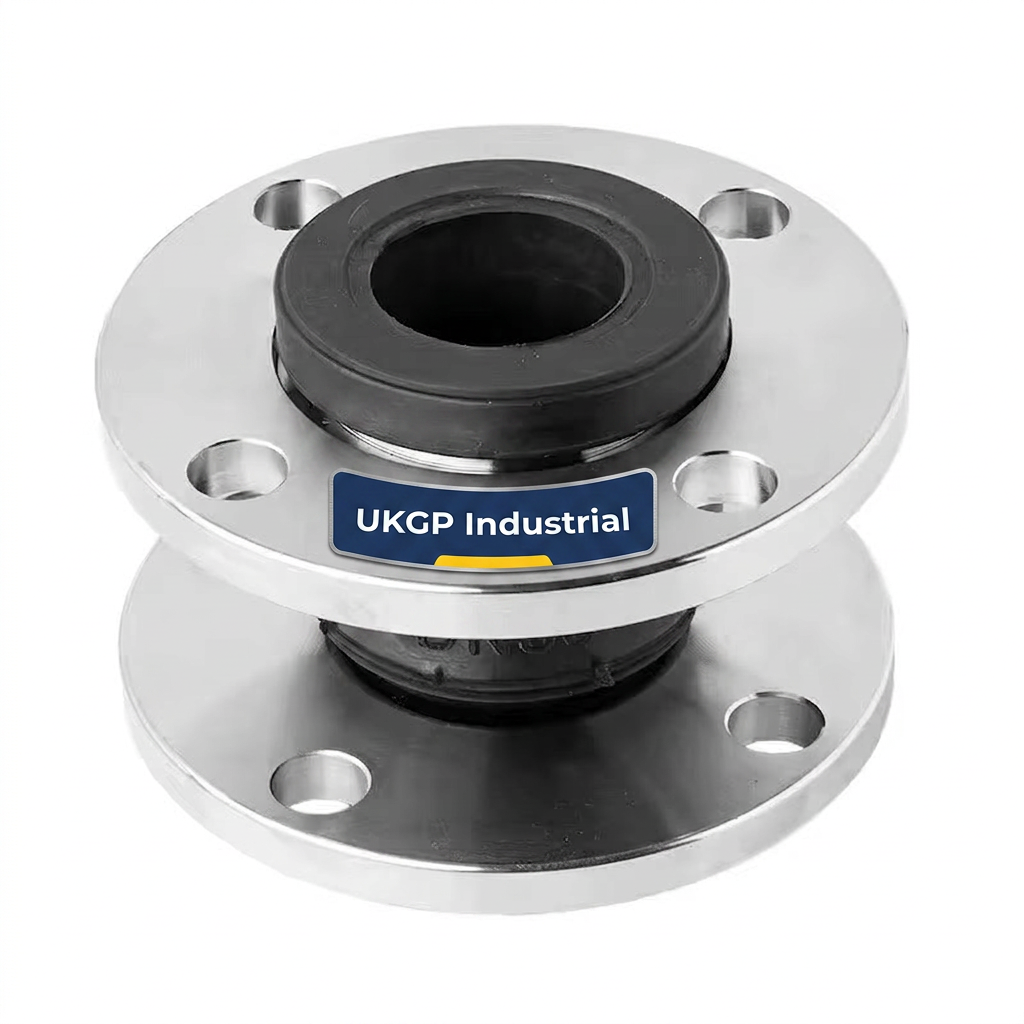

UKGP-EB-05
DN80 (3") Rubber Expansion Bellows & Pipework Expansion Joints
Single sphere · PN16 flanged · EPDM
£195View detailsUKGP-EB-06
DN100 (4") Rubber Expansion Bellows & Pipework Expansion Joints
Single sphere · PN16 flanged · EPDM
£245View detailsUKGP-EB-07
DN125 (5") Rubber Expansion Bellows & Pipework Expansion Joints
Single sphere · PN16 flanged · EPDM
£325View details
UKGP-EXB · Sizes & buy
Rubber expansion bellows
Single and twin sphere EPDM flanged rubber expansion joints for vibration isolation and thermal compensation on closed heating, chilled water and HVAC pipework. PN16 flanged ends as standard. Axial, lateral and angular movement absorbed.
- Body
- EPDM rubber
- Flange
- PN16 carbon steel
- Temp
- -10°C to 100°C
- Deflection
- 15° max
£95
- Length
- 95 mm
- Deflection
- 15°
- Extension
- 6 mm
- Compression
- 9 mm
- Lateral movement
- 9 mm
£110
- Length
- 95 mm
- Deflection
- 15°
- Extension
- 6 mm
- Compression
- 10 mm
- Lateral movement
- 9 mm
£125
- Length
- 105 mm
- Deflection
- 15°
- Extension
- 7 mm
- Compression
- 10 mm
- Lateral movement
- 10 mm
£165
- Length
- 115 mm
- Deflection
- 15°
- Extension
- 7 mm
- Compression
- 13 mm
- Lateral movement
- 12 mm
£195
- Length
- 130 mm
- Deflection
- 15°
- Extension
- 8 mm
- Compression
- 15 mm
- Lateral movement
- 12 mm
£245
- Length
- 150 mm
- Deflection
- 15°
- Extension
- 10 mm
- Compression
- 19 mm
- Lateral movement
- 13 mm
£325
- Length
- 165 mm
- Deflection
- 15°
- Extension
- 12 mm
- Compression
- 19 mm
- Lateral movement
- 13 mm
£425
- Length
- 180 mm
- Deflection
- 15°
- Extension
- 12 mm
- Compression
- 20 mm
- Lateral movement
- 14 mm
£685
- Length
- 210 mm
- Deflection
- 15°
- Extension
- 14 mm
- Compression
- 22 mm
- Lateral movement
- 16 mm
£895
- Length
- 240 mm
- Deflection
- 15°
- Extension
- 16 mm
- Compression
- 25 mm
- Lateral movement
- 18 mm
Prices ex VAT. Alternative lengths (130 / 150 / 200 mm), PN25 flanges, NBR / nitrile and stainless tie-bar restraint kits available — call +44 20 8935 5572.
Variants
Rubber expansion bellows — configurations available
Benefits
Why specify our rubber expansion bellows
- Axial, lateral and angular movement
- Multi-ply stainless steel construction
- Manufactured to EN 14917 / EJMA standards
- Custom flanged or weld-end terminations
Typical applications
Expansion bellows specifications
- Size range
- DN15 — DN3000+
- Pressure
- Up to PN40
- Temperature
- -200°C to 800°C
- Materials
- 316L, 321, Inconel
UK delivery
Stocked sizes — same-day dispatch from our UK warehouse for orders placed before 3pm (Mon–Fri)
4-year warranty
Manufacturer-backed defect cover on every UKGP product
Engineer support
Sizing, drawings & site advice — free
Call the team
+44 20 8935 5572 · 8am–5pm
