UKGP Industrial expands UK pressure fabrication capacity with new welding cell
March 9, 2026
Manufacture · Supply · Installation
UK side stream filtration systems for closed heating & chilled loops.
UKGP Industrial manufactures, supplies and installs skid-mounted side stream filtration units that remove magnetite, sludge and debris 24/7 — protecting boilers, plate heat exchangers and pipework across UK plant rooms. Backed by our full range of low loss headers, expansion bellows and pressure fabrications, all covered by a 4-year manufacturer warranty.

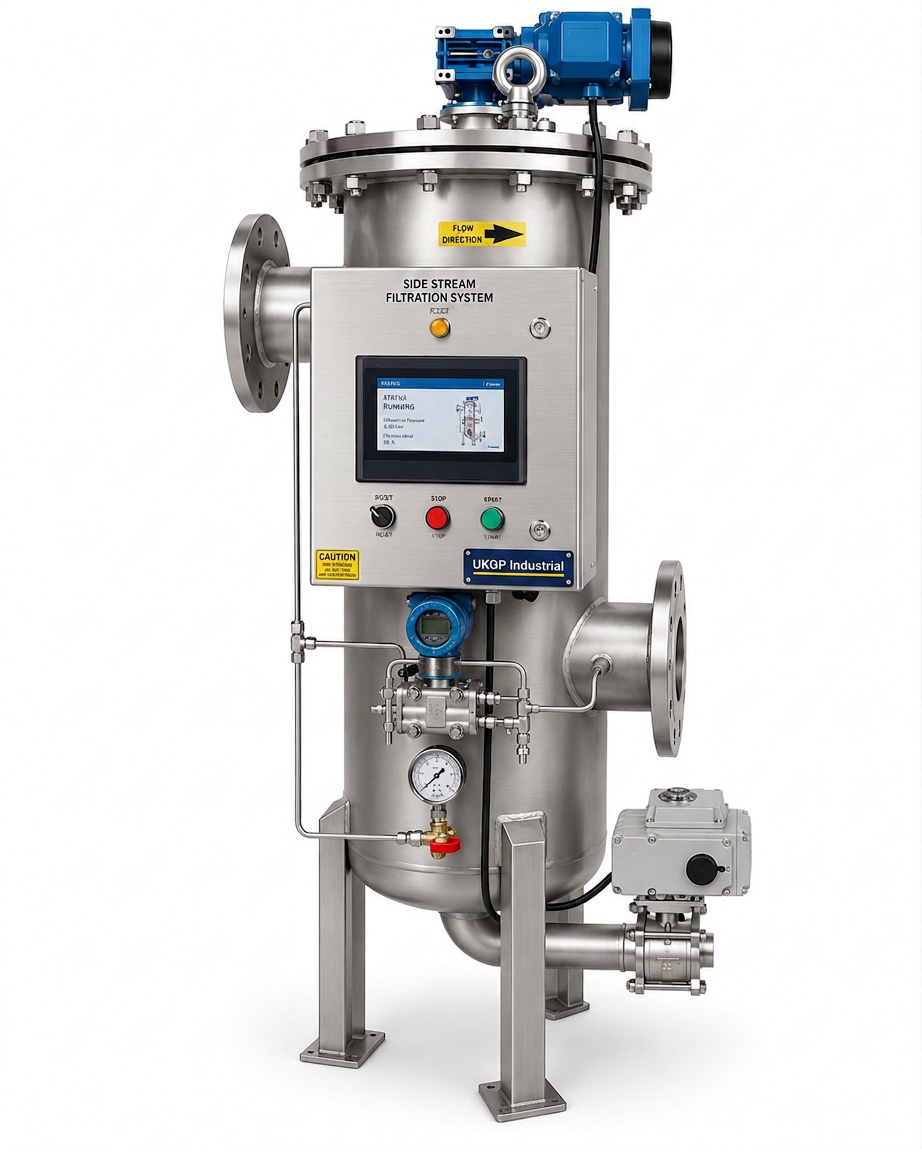

Side stream filtration skid — UKGP flagship
UK-supplied · 19–80 m³/h · Self-cleaning · 4-year warranty
UK
Manufacture · Supply · Installation
UK-supplied skids and fabrications, delivered and installed nationwide — every product covered by our 4-year warranty.
Flagship product
Side stream filtration — 24/7 protection for closed loops.
Our flagship side stream filtration skids continuously scrub magnetite and sludge from LTHW, chilled and district heating circuits — paired with plate heat exchangers and low loss headers for a complete plant-room solution.
UKGP-SSFFlagshipSide Stream Filtration
Full automated side stream filtration and system cleaning
- Flow rate
- 1 — 50 m³/h
- Filtration
- 5 — 100 micron
- Power
- 230V / 400V

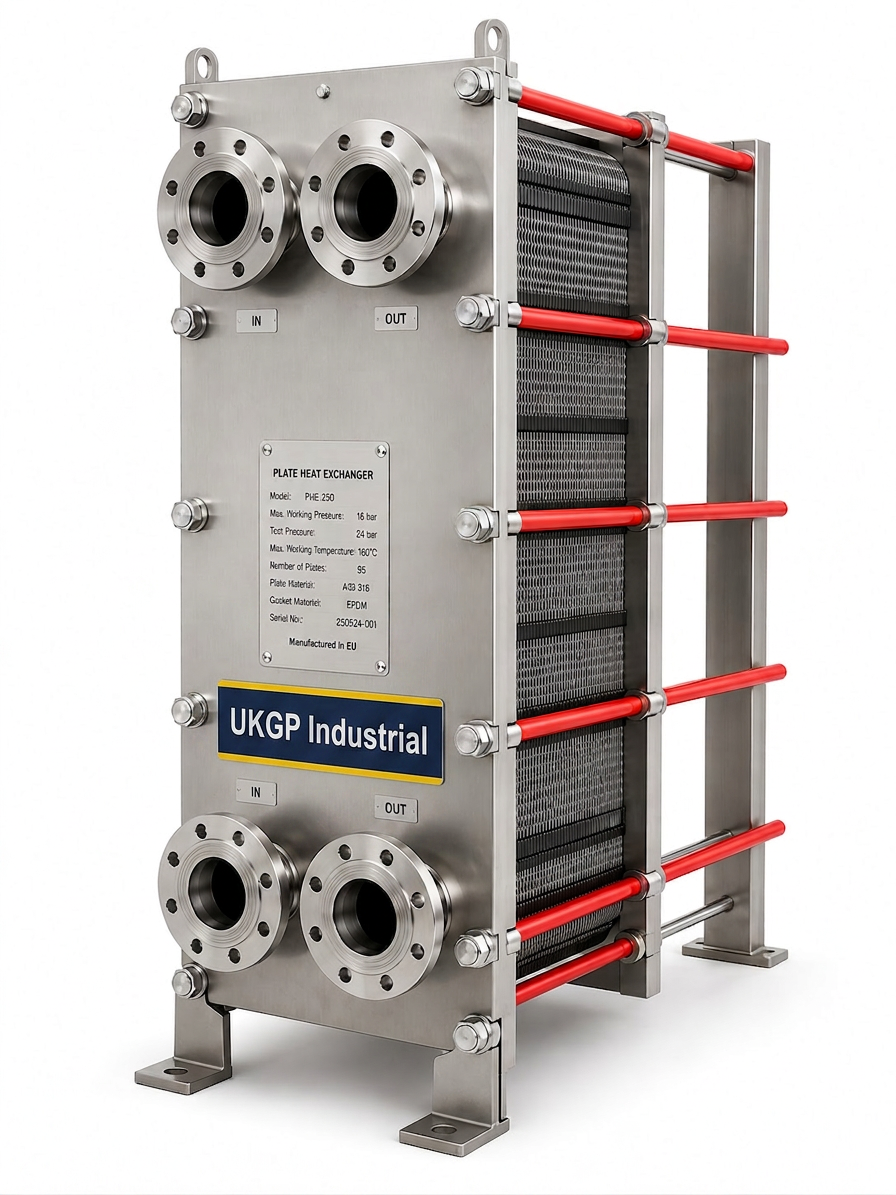

UKGP-PHEPlate Heat Exchanger
Efficient thermal transfer across fluids
- Duty
- 5 kW — 20 MW
- Pressure
- Up to 25 bar
- Temperature
- -30°C to 180°C

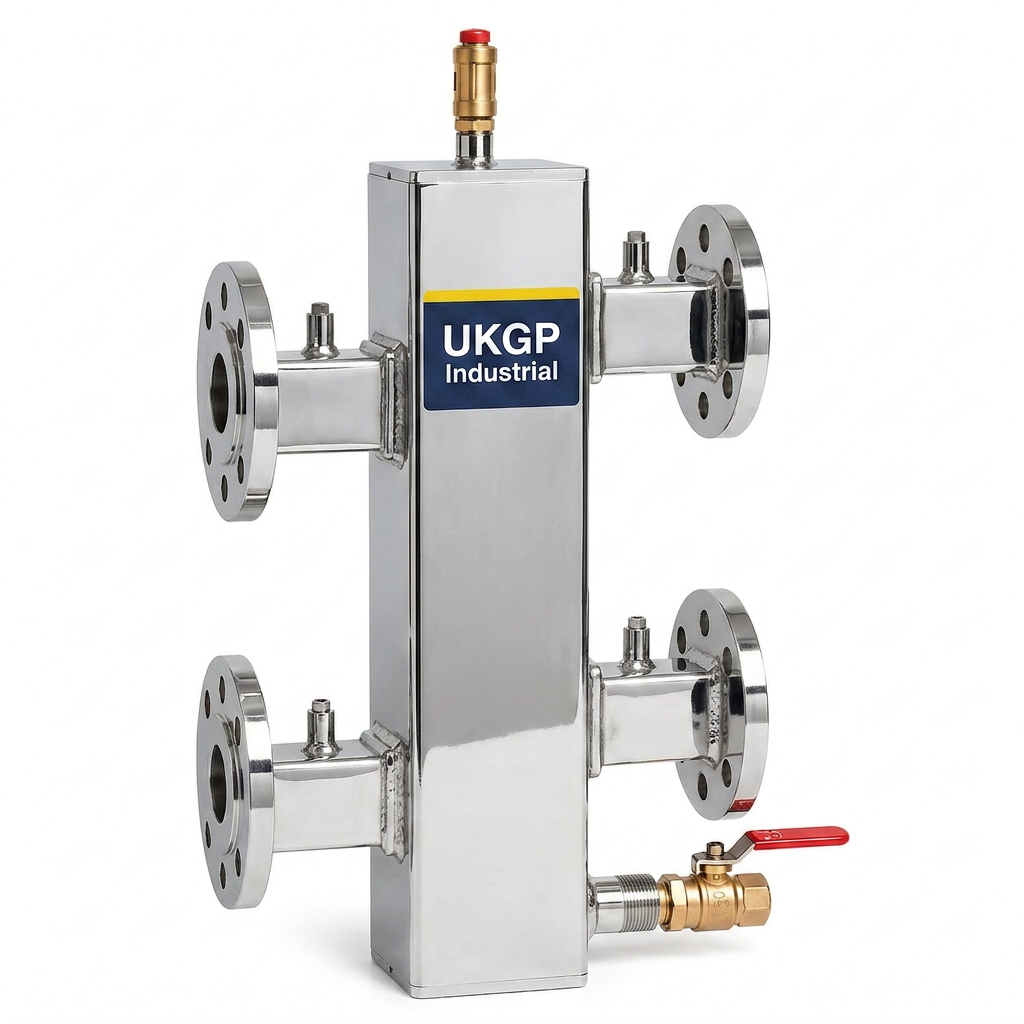

UKGP-LLHLow Loss Headers
Hydraulic separation for multi-boiler systems
- Flow rate
- Up to 240 m³/h
- Pressure
- Up to 10 bar
- Connections
- Flanged or threaded
Full stock range
Every product we manufacture, supply & install.
UK-supplied, held in stock or made to order — each product line is covered by our 4-year manufacturer warranty and backed by in-house engineering support.

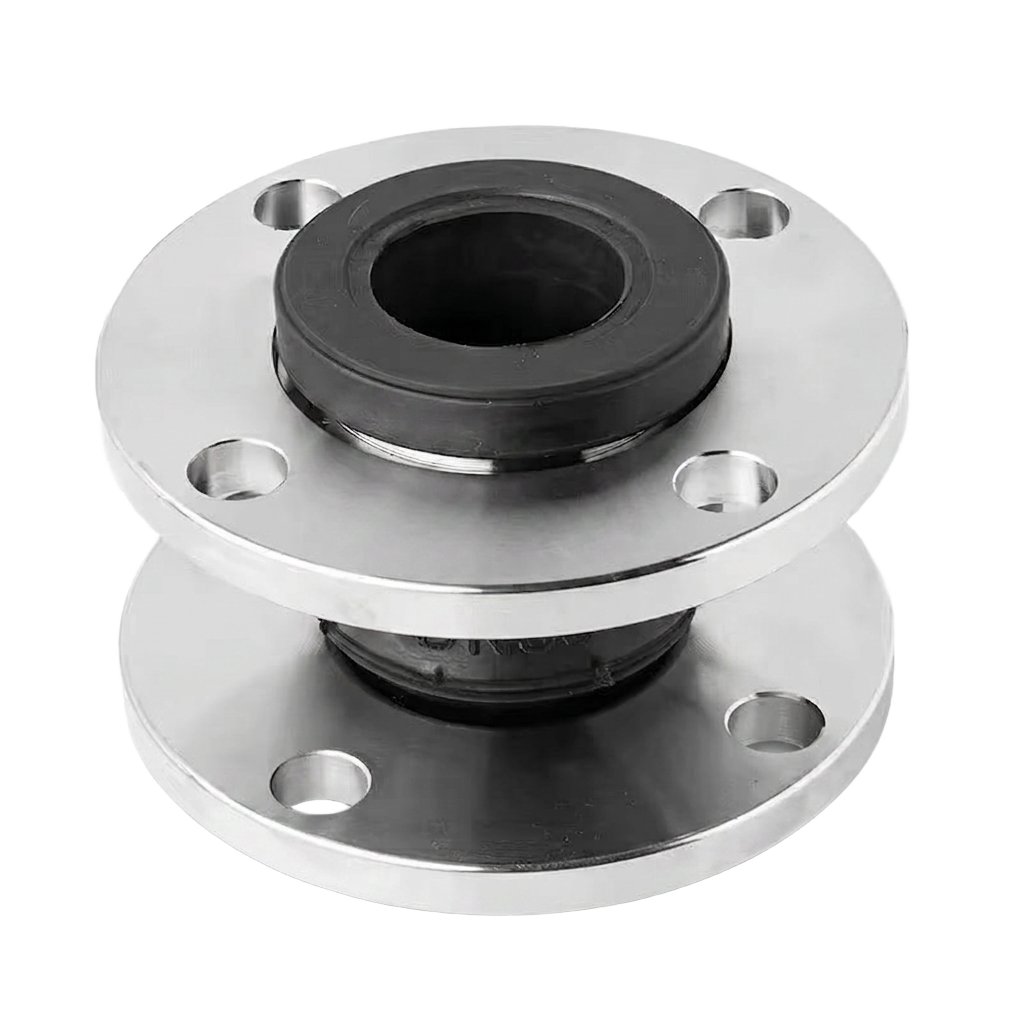

UKGP-EXB
Rubber Expansion Bellows
Thermal compensation and vibration absorption
View range
UKGP-MEB
Metal Expansion Bellows
Multi-ply stainless steel axial, lateral and universal compensators
View rangeUKGP-SSEJ
Stainless Steel Expansion Joints
316L / 321 SS bellows compensators for steam, hot water and chemical service
View rangeUKGP-FEB
Flanged Expansion Bellows
PN16 / PN25 flanged bellows for direct bolt-up to UK pipework
View rangeUKGP-LLH
Low Loss Headers
Hydraulic separation for multi-boiler systems
View range

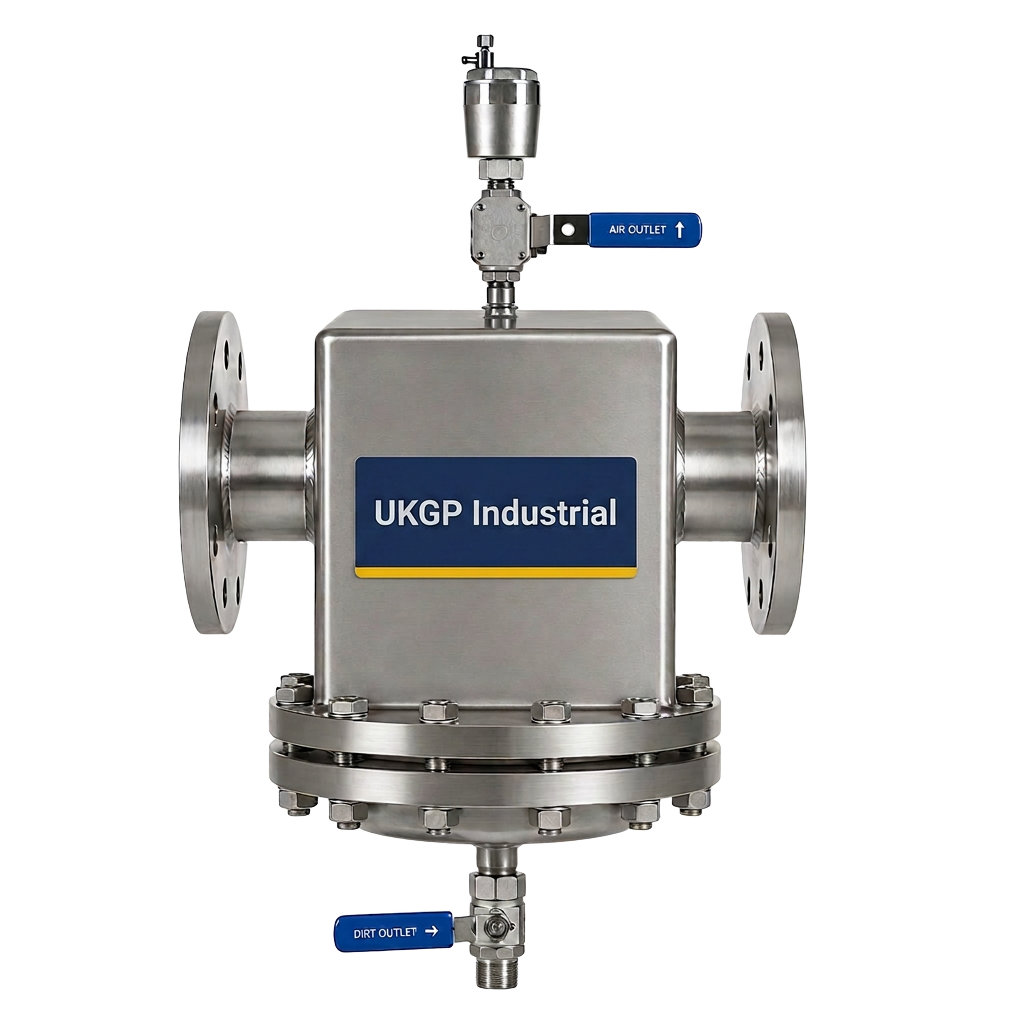

UKGP-ADS
Air & Dirt Separators
Deaeration and sludge removal
View range
UKGP-CDP
Chemical Dosing Pots
Safe introduction of system treatment chemicals
View rangeUKGP-PHE
Plate Heat Exchanger
Efficient thermal transfer across fluids
View rangeUKGP-SSF
Side Stream Filtration
Full automated side stream filtration and system cleaning
View range
UKGP-PHS
pH Sensor Transmitters
Smart pH sensing with M12 quick-connect
View range

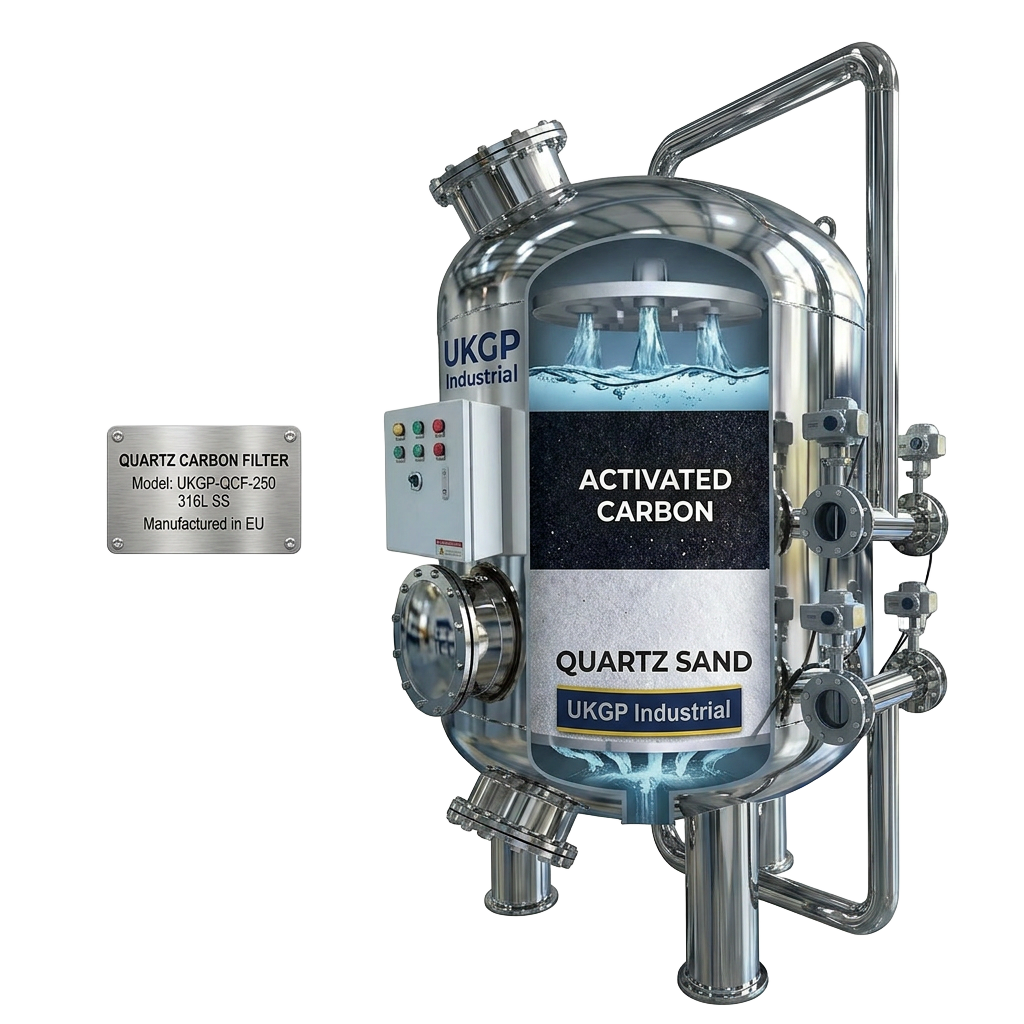

UKGP-QCF
Quartz Sand & Activated Carbon Filter
Multimedia pressure filtration for industrial water treatment
View range

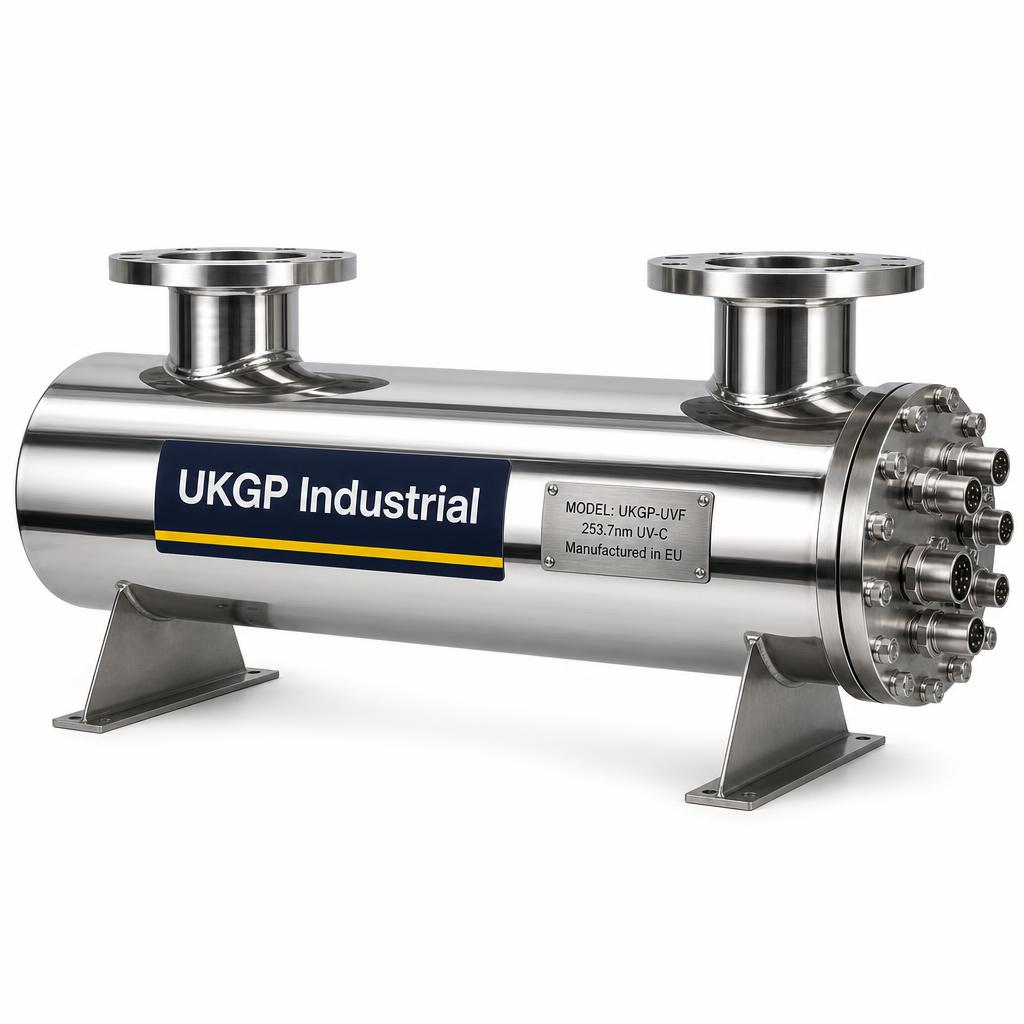

UKGP-UVF
Commercial UV Water Filter
253.7 nm UV-C disinfection without chemicals
View range4-year manufacturer warranty on every UKGP product · UK design, fabrication and installation.
Flagship system

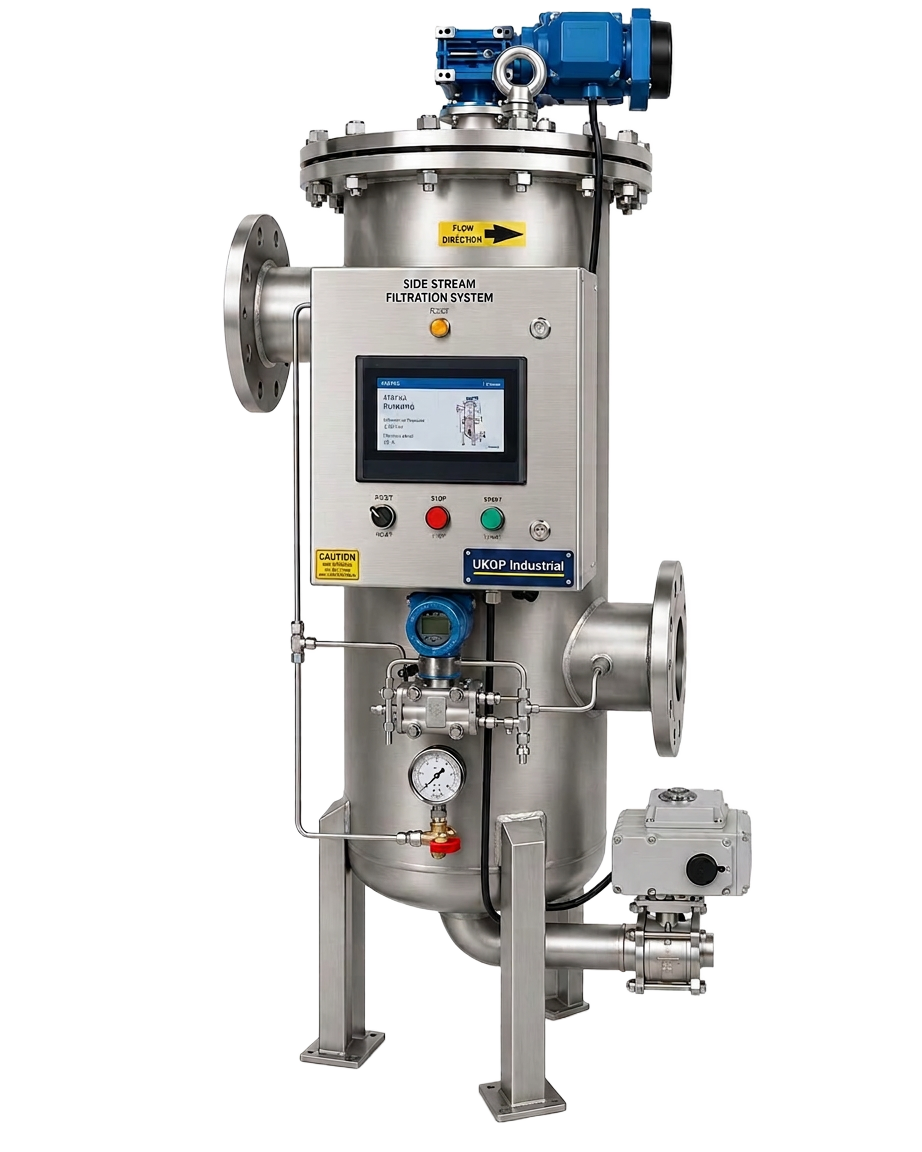

What is side stream filtration — and why do closed loops need it?
Side stream filtration continuously draws a small percentage (typically 5–10%) of the total flow from a closed heating or chilled water circuit, passes it through a high-efficiency magnetic and depth filter, and returns polished water to the system. Because a side stream filtration unit runs 24/7, it removes magnetite, corrosion debris and installation sludge faster than they can accumulate — protecting boilers, plate heat exchangers, pumps and control valves for the life of the plant.
Every UKGP side stream filtration skid is specified and supplied in the UK to BSRIA BG 29/2020 and CIBSE guidance for closed-loop water treatment. Standard packages cover flow rates from 1 m³/h up to 50 m³/h, with carbon-steel housings, SS304 screens, automated backwash and integrated differential-pressure control — so the operator sees a "fit-and-forget" plant-room asset rather than a maintenance burden.
Whether you run a district heating network, a data centre chilled water loop, a commercial LTHW system or a process cooling circuit, adding side stream filtration is the single highest-impact upgrade for water quality, energy efficiency and asset life. It is the flagship product in the UKGP Industrial range and the fastest route to measurable, visible improvements in system health.
About Us
UKGP Industrial offers a broad range of pipe expansion joints and pressure fabrications; we are both stockist and manufacturer with factories in the UK and Spain. We are accredited to ISO 9001, ISO 14001 and the PED. As required we offer full material traceability, documentation and compliance with client specifications — our welders are qualified to both EN and ASME.

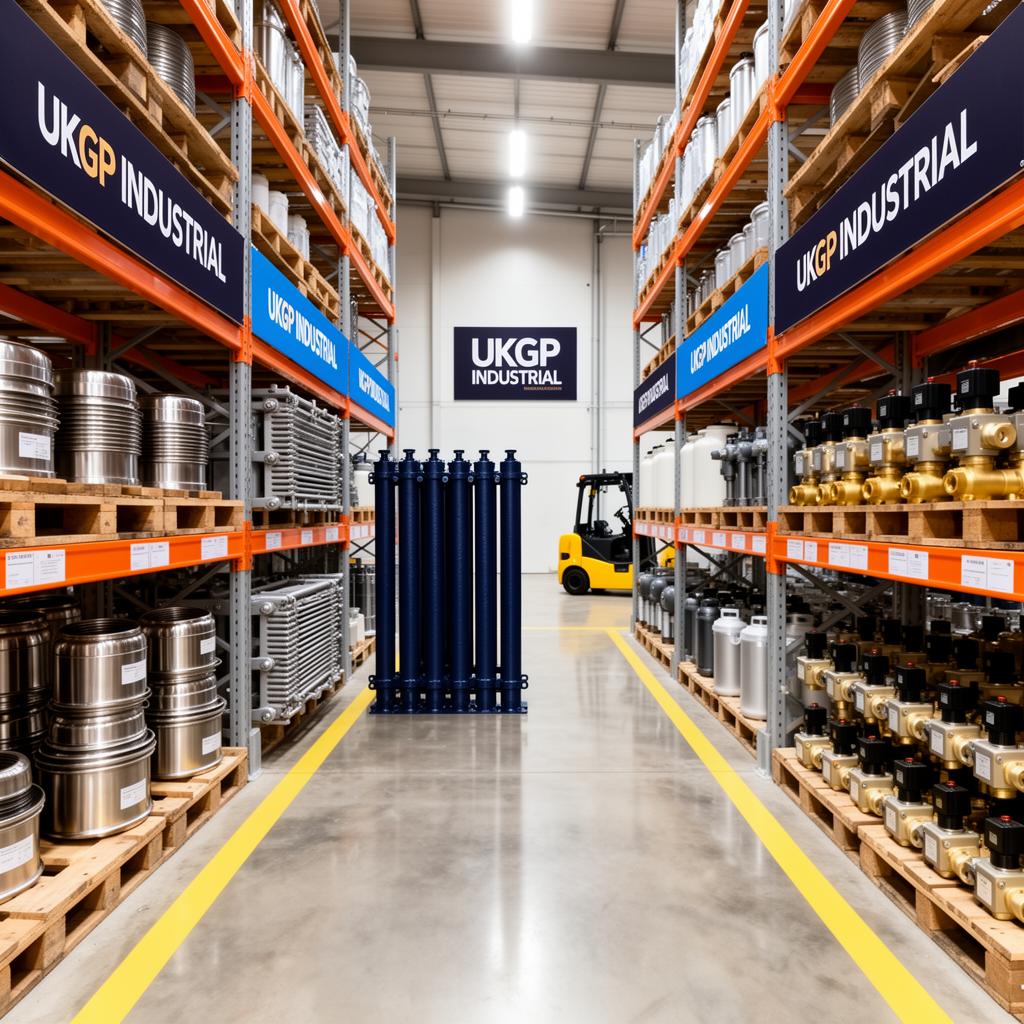

You can also buy a wide range of stock expansion joints and HVAC fabrications direct from our web shop with next day delivery.
We are here to help — please get in touch by phone, email or via the website LIVE CHAT facility. We will be delighted to assist you in selecting the right stock product through to developing a unique design for your application.
Latest UKGP Industrial News
More news
Commercial Water Heating
UKGP Industrial Launch New Skid-Mounted DHW Hot Water Solution: PhexStore
September 26, 2025
Commercial Water Heating
Ultra-Compact New Packaged Brazed Plate Heat Exchanger Now Available
March 3, 2025
Commercial Water Heating
UKGP Industrial Launches New High-Grade DHW Commercial Buffer Vessel Range
October 17, 2024
Commercial Water Heating
UKGP Industrial launches cutting-edge new PhexPak packaged plate heat exchanger range
April 17, 2024
Frequently Asked Questions
+Q. Do you hold stock of rubber bellows?
Yes — we hold a large range of single and twin sphere rubber expansion bellows in DN32–DN300 ready for same-day despatch from our UK warehouse.
+Q. How do you identify flanges?
Flanges are identified by standard (EN 1092, ANSI B16.5, BS10), pressure rating (PN6/10/16/25/40), size (DN), facing (RF/FF) and drilling. Send us a photo and the PCD and we can confirm.
+Q. How do you install a rubber bellows or a metal bellows?
Both must be installed between fixed anchor points, fully aligned, and never pre-stretched or compressed. Tie rods on rubber units stay fitted during install and are removed only once the line is anchored.
+Q. What lengths of rubber bellows do you offer?
Standard EN 14917 face-to-face lengths from 95mm (DN32) through to 300mm+ on larger units. Custom lengths and twin-sphere extended units available on request.
+Q. Can you match another brand / manufacturer of expansion joint or bellows?
Yes — we regularly cross-reference and supply equivalents to Senior Flexonics, Witzenmann, Belman, Teadit, Stenflex, Procco and others. Send the part number or a photograph.
+Q. What do I need to know to identify an existing expansion joint or bellows?
Manufacturer plate, overall length, end-to-end dimension, flange standard, number of convolutions and any movement values. A photograph against a tape measure is usually enough for us to specify a replacement.
+Q. Do you have rubber bellows for drinking / potable water or with WRAS approval?
Yes — WRAS-approved EPDM rubber bellows are available for potable water duties. Please specify when ordering so the correct elastomer is supplied.
Please visit our full FAQ page to see all our frequently asked questions.
Who can you talk to?
Try our sales and customer service team on 0208 935 5572.
They don't bite. And they know what they're talking about. Call the team any time from 8:30am to 3:30pm weekdays, 12:30pm Fridays or use LIVE CHAT if you would prefer a quick text answer.
For more complex queries, send us any pro-forma documentation using the get a quote form or email us sales@ukgpindustrial.co.uk.
Industry Experience
UKGP Industrial brings together engineering design capability with commercial and manufacturing experience to deliver practical water-side solutions for UK building services.
Our focus is on application and design — helping customers find the best value solution for closed heating and chilled water loops.
In-house engineering and fabrication covering side stream filtration skids, plate heat exchangers, dosing pots, expansion vessels and ancillary plant-room equipment.
Every product line is backed by a 4-year manufacturer warranty, full technical data sheets and UK-based support for M&E contractors, consultants and FM teams.
